Smart Pedestrian
Crosswalk System

Safer, walkable cities with AI-enabled crosswalk system

Our smart pedestrian crosswalk system improves pedestrian safety and vehicle traffic efficiency using data-driven insights:

AI-enabled “Pavlovian conditioning” to correct driver’s response

Detection & alerts on fast-approaching vehicles

Detection of jaywalkers & safe zone violators

Smart Pedestrian Safety & Traffic Control

Corrects Unsafe Behavior

Utilizes AI-enabled Pavlovian conditioning with negative audio & visual stimuli to discourage unsafe pedestrian and driver actions

Increases Pedestrian Safety

Detects & alerts pedestrians of oncoming vehicles, especially those approaching at high speeds.

Provides Visual Reminders

LCD screens display clear reminders to pedestrians and drivers when traffic rules are violated.

Optimised Traffic Condition

Track average travelling time surrounding the crosswalk using ANPR tracking technology.

System Features

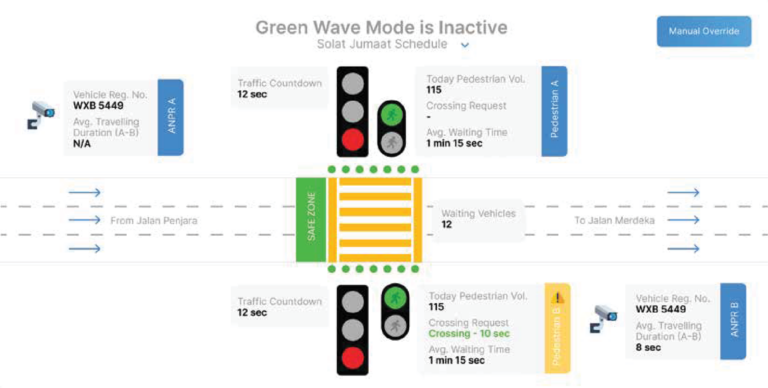

Real-time Traffic Monitoring

Continuously monitors traffic signals at the crosswalk

Flexible Crosswalk Management

Set customized crosswalk settings for specific times & events

Green Wave Integration

Seamlessly connects with nearby traffic light systems for coordinated traffic flow

AI-Powered Violation Detection

AI technology identifies & alerts pedestrians and vehicles about traffic rule violations

Adaptive Waiting Times

Automatically adjusts waiting times for pedestrians & vehicles based on traffic conditions

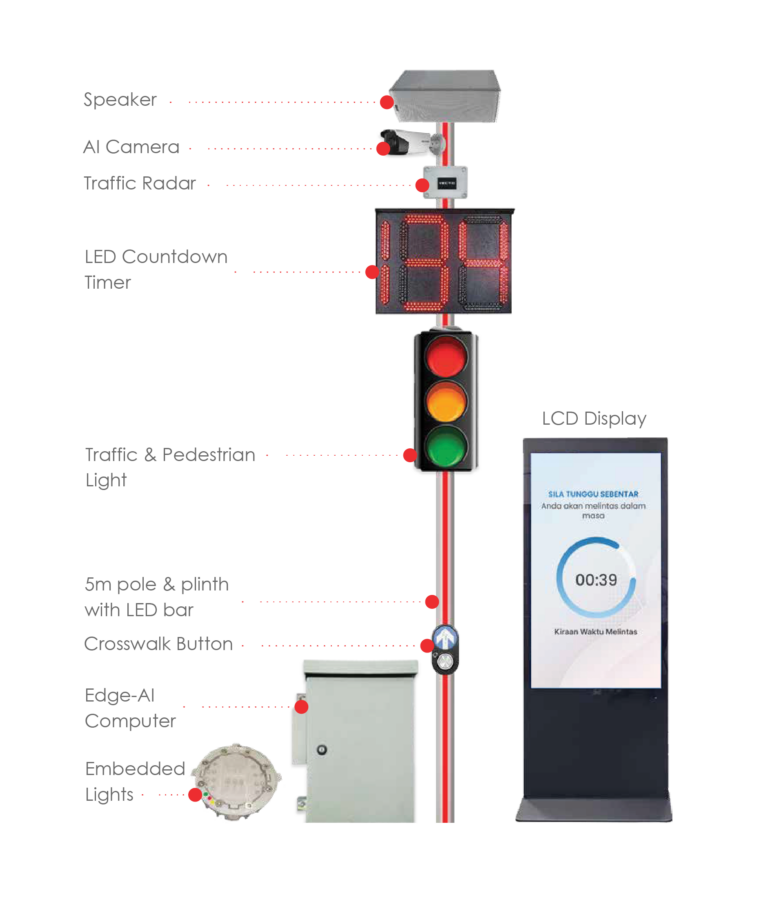

Key Components

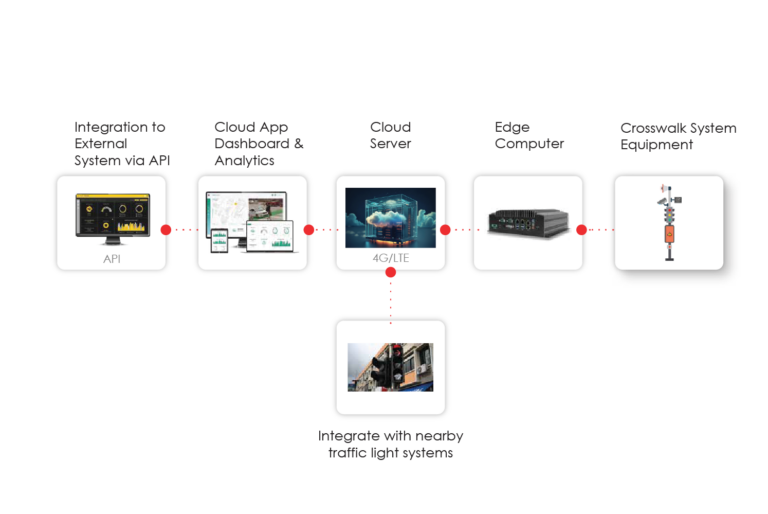

System Architecture

System Spesifications

Smart Pedestrian Crosswalk

Able to detect cars up to 3 lanes, alerts for pedestrians & vehicles that violate traffic rules, control traffic lights based on traffic condition, monitoring of traffic patterns

Modbus, CANbus, RS232

Over the Air (OTA)

Configurable profiles on cloud dashboard

230 Vac +/- 15%

Uplink RSSI, Uplink SNR

IP65

Designed for SIRIM approval (IEC 62368 & MCMC MTSFB TC007)

Radar Module

Up to 3 lanes (Min 20km/h, max 150km/h with 1km/h resolution and within 10% accuracy)

Min 50 meter

Radar cross section (RCS), distance, speed

12VDC (2A)

IP67

Camera

Detects pedestrian, ANPR & vehicle classification

  • Ch 1 – 4MP (focused/narrow view)
  • Ch 2 – 4MP (wide-angle)

Yes – 140dB

Five (5)

240VAC or 12VDC (1.9A) Power-over-Ethernet (PoE)

LED Display

43-inch

942mm x 530mm

HDMI/USB/VGA

1920 x 1080

2000cd/m2

178° (horizontal & vertical)

IP55

220VAC

Speaker

40W 100V

2 x 4”, 1 tweeter

88 +/- 3dB

130mm x 310mm x 140mm

Aluminium body, powder epoxy coated grille

IP65

Traffic Light (Vehicle)

230VAC

195-265VAC

300mm

> 400cd (EN 12368)

  • Red 616-624nm; Amber 586-592nm;
  • Green 499-507nm (EN 12368)

Red 8W; Amber 12W; Green 12W

UV-stabilized polycarbonate

IP65 (EN 60598)

IR3 (EN 60598)

<1.5kg

1080mm x 365mm x 420mm

Pedestrian Light with Countdown Timer

85-265VAC

≥ 5,000cd/m2

Red 625 +/- 5nm; Green 505 +/- 5nm

30° (horizontal & vertical)

Red pedestrian ≤10W; Green pedestrian, red timer & green timer ≤12W

UV-resistant polycarbonate

Pedestrian Push Button

3W

Controller-activated & push button

Red person, Green arrow

30° (horizontal & vertical)

Red pedestrian ≤10W; Green pedestrian, red timer & green timer ≤12W

IP65

Aluminium die cast

1kg

Embedded Road Studs Light

24VDC (0.75W)

Red, yellow, green

Cast aluminium shell, polycarbonate, epoxy resin

Ф135 × 50mm

IP68

Aluminium die cast

1kg

Floor Standing Enclosure/Cabinet

1400mm x 800mm x 400mm

1316mm x 719mm

540mm x 180mm

Polyester powder coating, RAL7032

Beige

Yes – 6-inch

Yes

Yes

IP55
